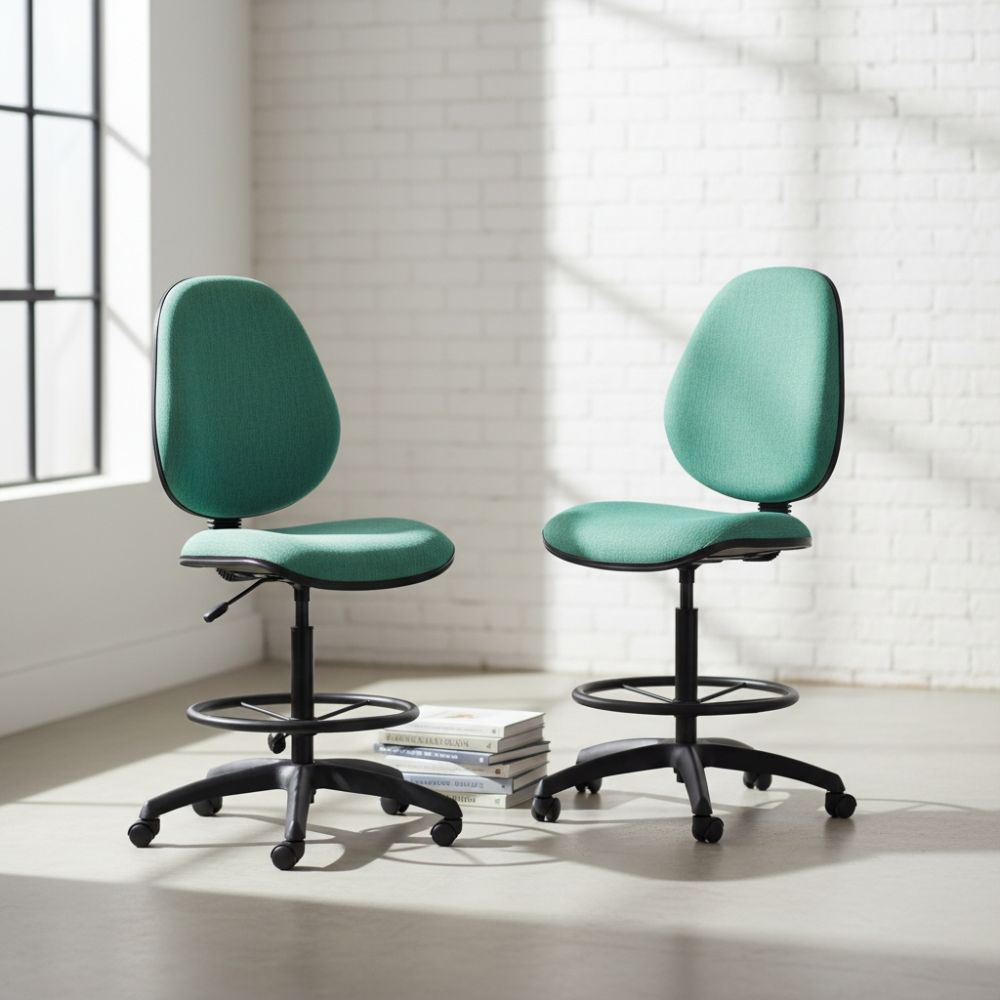

Maxi Back & Seat Draughtsman

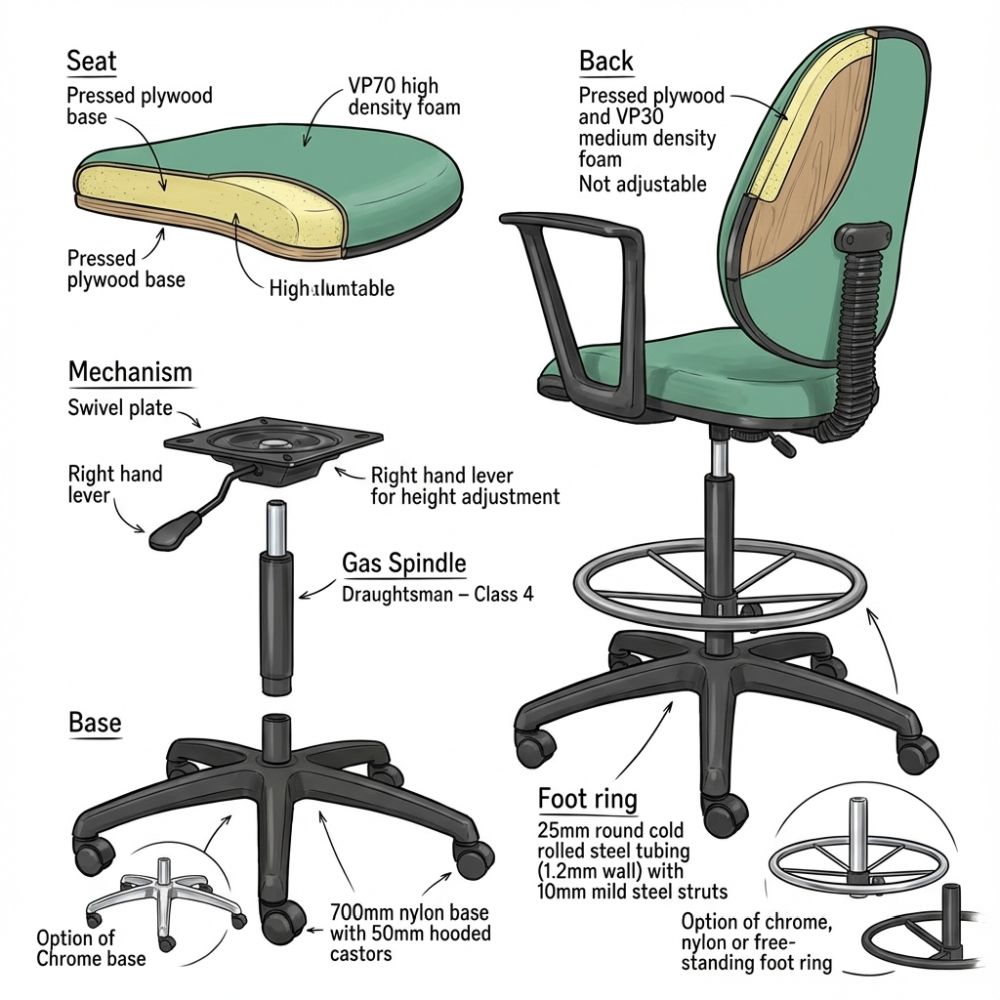

Mechanism: Swivel plate. Right hand lever – Height adjustment.
Gas Spindle: Draughtsman – Class 4
Base: 700mm Nylon base with 50mm hooded castors. Option of Chrome base.
Foot ring: 25mm Round tubing – Cold rolled steel with 1.2mm wall thickness. 10mm Mild steel struts. Option of chrome, nylon or free-standing foot ring.
Seat: Pressed plywood. VP70 high density foam
Back: Pressed plywood. VP30 medium density foam. Static back.
